Motion Sensor LED Stair Controller MALIIGAZA 32-Channel PIR Lighting

Description

Product Overview

The MALIIGAZA Motion Sensor LED Stair Controller is engineered to bring intelligent illumination to residential and commercial staircases. Built around a robust 32‑channel PIR (Passive Infrared) sensor array, the unit detects movement on each step and triggers a cascading light effect that follows the user’s ascent or descent. The controller supports both standard LED strips and SPI‑compatible strips, allowing for a wide range of color and effect options, from subtle white glow to vibrant color‑changing sequences. A built‑in daylight sensor automatically disables the system during daylight hours, ensuring that the lights only operate when needed, which translates into lower electricity usage and extended LED lifespan.

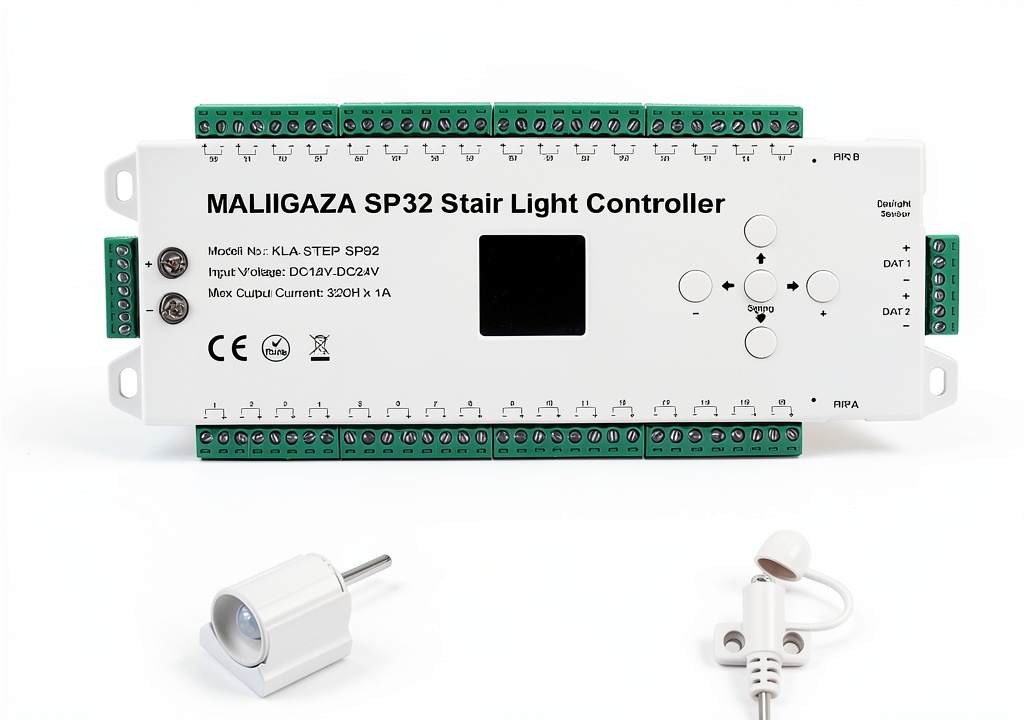

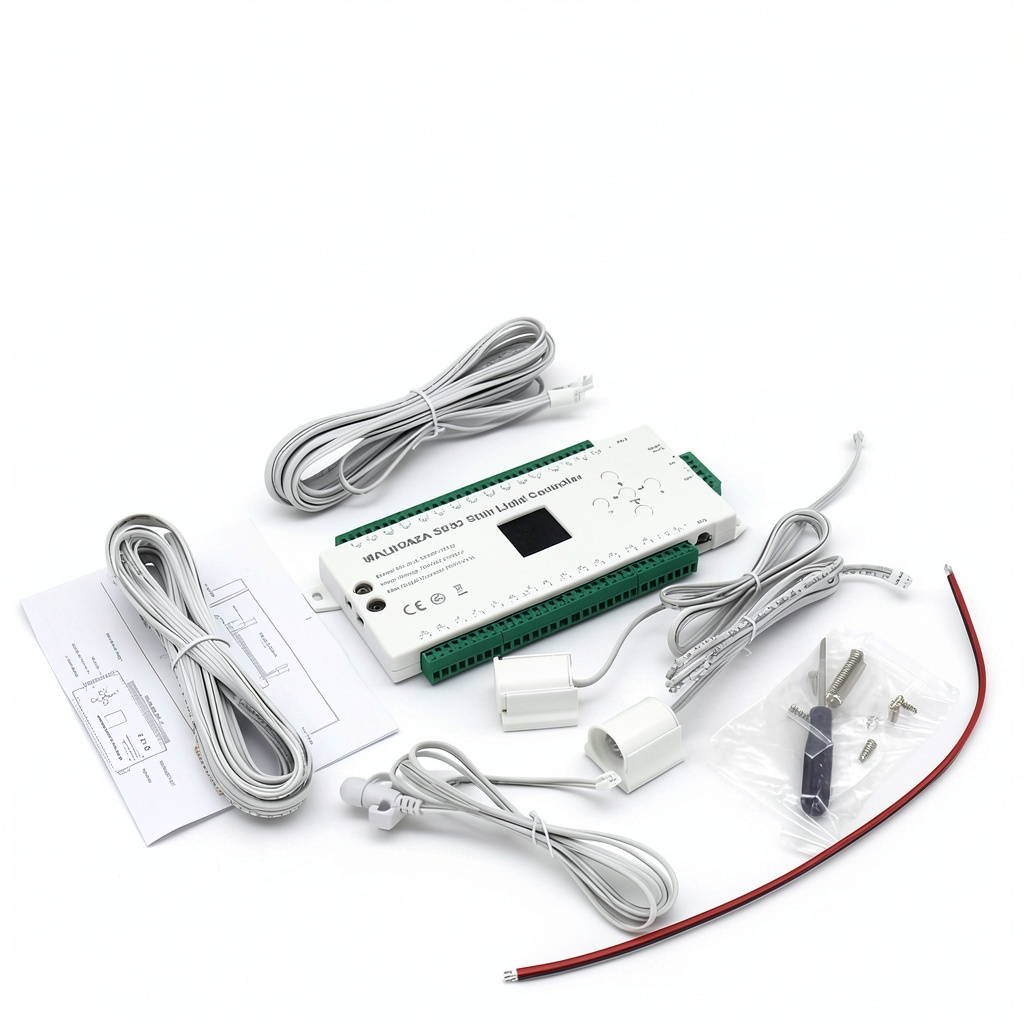

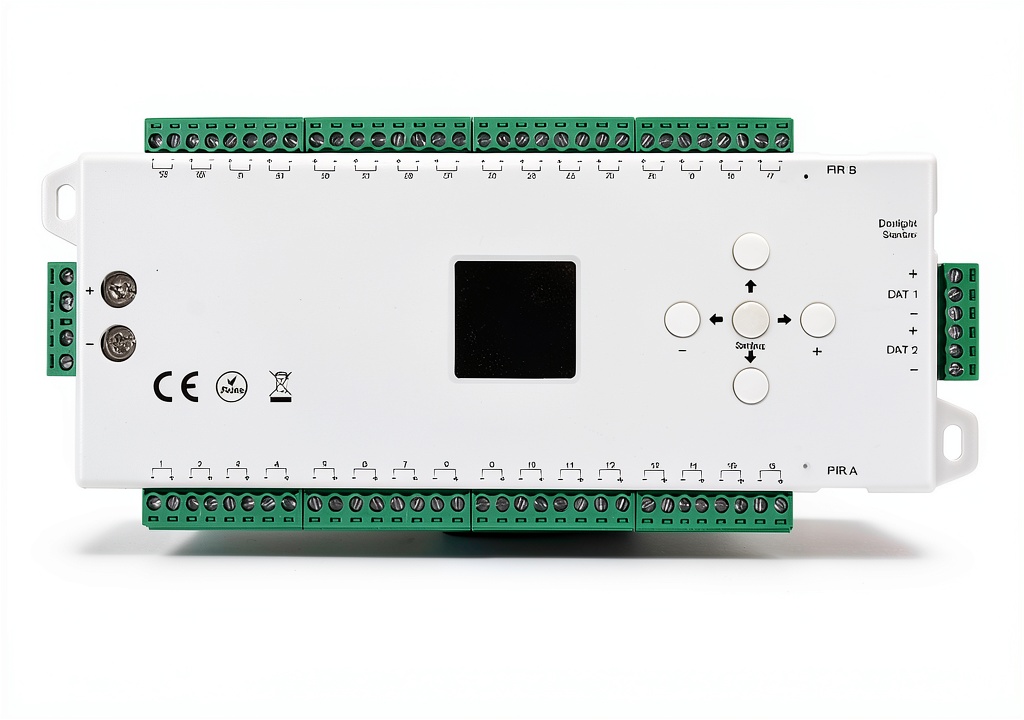

The hardware is housed in a compact, heat‑dissipating aluminum enclosure measuring 3 × 2 × 5 inches and weighing just over a pound, making it easy to mount in tight spaces under railings or within stairwell ceilings. The package includes two PIR sensors, two extension cables, a daylight sensor, and an OLED display with five intuitive buttons for configuration. The OLED screen provides real‑time feedback on mode selection, brightness level, and sensor status, eliminating guesswork during setup. All components are designed with an anti‑leakage system that protects against short circuits and ensures stable output even under fluctuating power conditions.

Usage

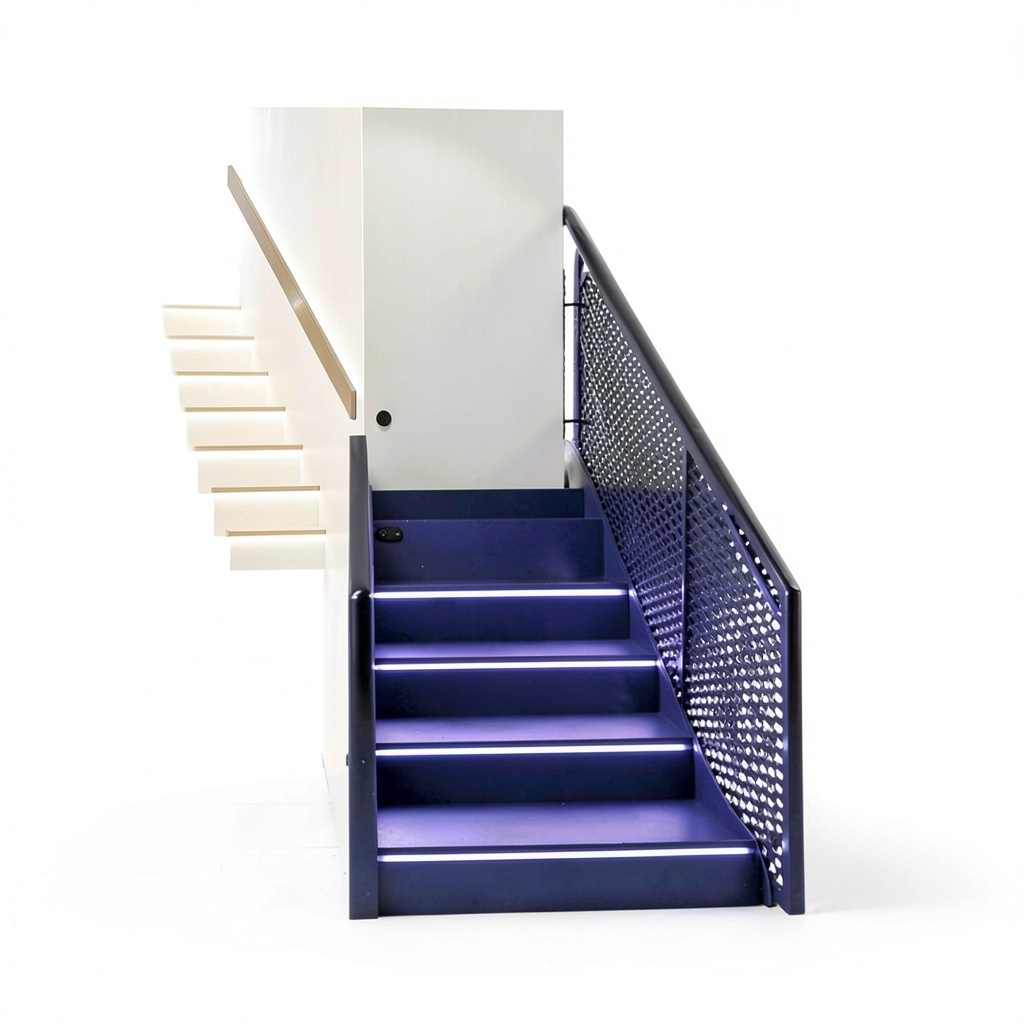

This controller is ideal for a variety of indoor environments where safety and ambience are paramount. In residential homes, it can be installed on staircases leading to bedrooms, basements, or outdoor decks, providing a gentle guide for occupants during nighttime hours. In commercial settings such as office buildings, hotels, or public facilities, the system enhances wayfinding and reduces the risk of trips and falls, especially in low‑light conditions. The daylight sensor ensures that the lights remain off during daytime, preserving natural illumination and further cutting energy costs.

Installation is straightforward: mount the controller in a concealed location, connect the LED strips to the provided extension cables, and position the PIR sensors at the top and bottom of the stairwell. The controller’s five‑button interface allows users to select from a menu of lighting modes—including flowing, chasing, trailing, wave, and single‑step—adjust brightness, and set the speed of the light transition. Once configured, the system operates autonomously, turning on as soon as motion is detected and shutting down after a preset delay once the area is clear.

Why Choose Us

Choosing the MALIIGAZA Motion Sensor LED Stair Controller means investing in a product that combines durability, flexibility, and intelligent design. The aluminum housing not only provides excellent heat dissipation but also resists corrosion, making it suitable for humid environments such as basements or near indoor pools. The anti‑leakage circuitry safeguards the system against voltage spikes, ensuring reliable performance over years of operation.

MALIIGAZA stands behind its products with a comprehensive after‑sales service package, including a 12‑month warranty, responsive technical support, and detailed installation guides. Customers benefit from a community of users and a knowledge base that offers troubleshooting tips, firmware updates, and creative lighting ideas. The controller’s compatibility with a wide range of LED strips means that users can upgrade or expand their lighting setup without replacing the controller, protecting their investment and allowing for future design evolution.

Furthermore, the controller’s low power consumption aligns with green building standards and can contribute to LEED certification points for commercial projects. By automating lighting based on occupancy and ambient light levels, the system reduces unnecessary electricity usage, supporting both cost savings and environmental stewardship.

Key Features

• 32‑channel PIR sensor array delivers precise motion detection for each stair step, ensuring lights follow the user’s path.
• Daylight sensor automatically disables the system during daylight, maximizing energy efficiency and extending LED life.
• OLED display with five‑button control offers intuitive setup, mode selection, and real‑time status feedback.
• Supports both standard and SPI LED strips, enabling a wide palette of colors and dynamic lighting effects.
• Comes with dedicated after‑sales support, a 12‑month warranty, and detailed installation documentation for hassle‑free setup.

FAQ

How does the motion detection work on a multi‑step staircase?

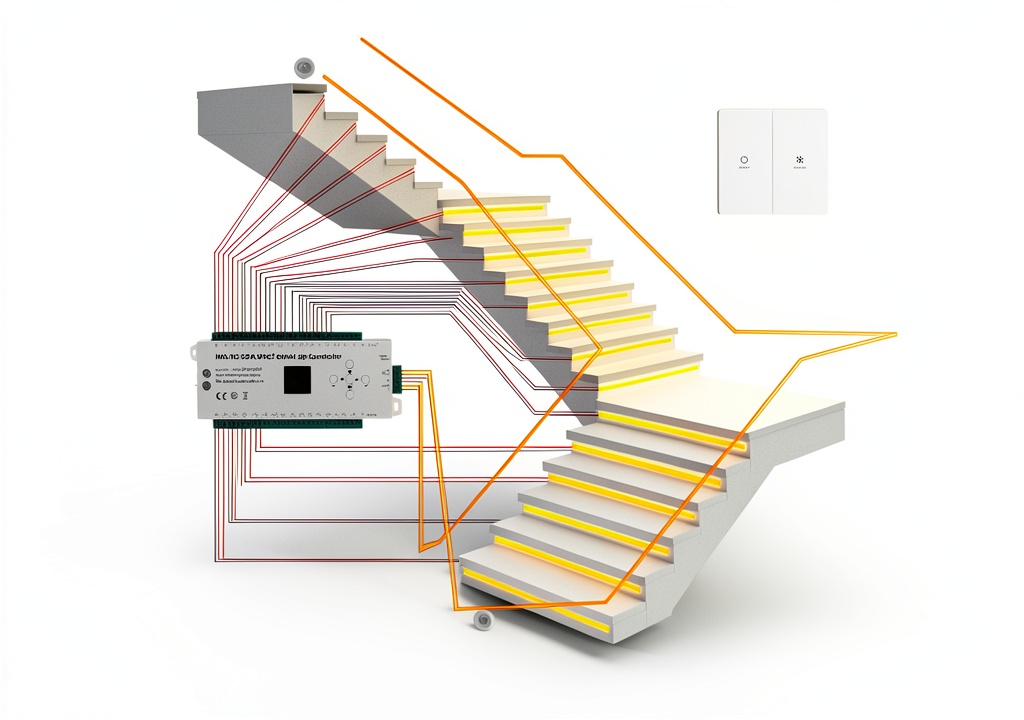

The controller uses two PIR sensors placed at opposite ends of the stairwell. Each sensor monitors a specific zone and communicates with the controller to activate the corresponding LED segment. When a person steps onto the stairs, the nearest sensor detects the infrared signature and triggers a cascading illumination that follows the movement, creating a smooth flow of light from the bottom to the top (or vice versa). The system also includes a configurable timeout, so the lights remain on for a set period after the last motion is detected.

Can I use this controller with color‑changing LED strips?

Yes. The controller is compatible with SPI‑type LED strips that support RGB or RGBW color channels. By connecting a compatible strip, you can select from pre‑programmed color cycles or customize your own patterns using the OLED interface. This flexibility allows you to create ambient lighting that matches seasonal décor, special events, or personal preferences while still benefiting from the motion‑activated functionality.

What is the installation process like for someone with basic DIY skills?

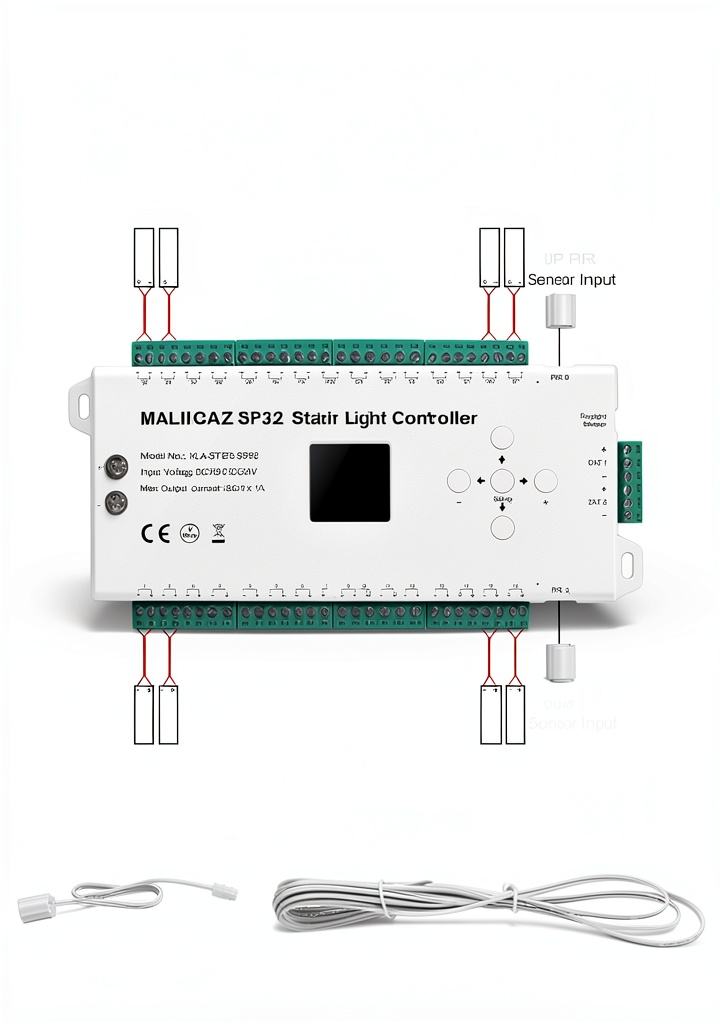

Installation is designed to be user‑friendly. First, mount the controller in a concealed location using the supplied screws or adhesive pads. Next, attach the LED strips to the extension cables, ensuring the polarity matches the controller’s output terminals. Position the two PIR sensors at the top and bottom of the stairwell, securing them with the provided brackets. Finally, connect the daylight sensor to the controller, power the unit, and use the five‑button interface to select your desired lighting mode, adjust brightness, and set the motion timeout. The included user manual provides step‑by‑step diagrams and troubleshooting tips.

Is the system safe for use in homes with children or pets?

Absolutely. The controller’s anti‑leakage system prevents electrical hazards by isolating the low‑voltage LED circuitry from the mains supply. All components are rated for indoor use and are enclosed in a non‑conductive housing, reducing the risk of accidental contact. Additionally, the motion‑activated nature means the lights only turn on when someone is present, preventing unnecessary glare that could startle pets or children.

How does the daylight sensor affect energy consumption?

The daylight sensor continuously monitors ambient light levels. When natural light exceeds a predefined threshold, the controller automatically disables the LED output, ensuring that the system does not consume electricity during daylight hours. This feature not only cuts energy costs but also extends the lifespan of the LED strips by reducing total operating hours. Users can fine‑tune the sensitivity of the daylight sensor through the OLED menu to match the specific lighting conditions of their environment.
